Auto Communal Nest (SKA Europe type )

Community nest for breeder and commercial layers .


1. Spacious, oxygen rich nest box guarantees a maximum nest acceptance by broiler breeders as well as commercial layers, reducing floor eggs .

2. Automatic Expulsion with movable back for birds is very friendly .

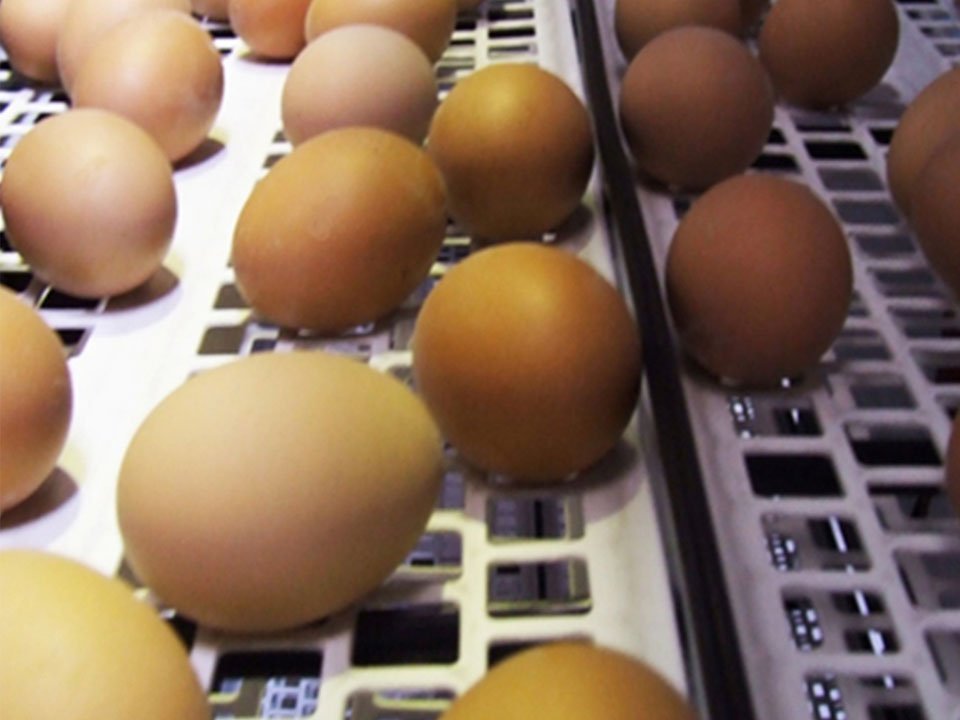

3. Egg handling is very careful . widen egg conveying belt prevents egg from collision during collection  , effectively reduce cracked eggs .

4. All nest parts are easily cleaning with high water pressure.

5.  Strong hot dip galvanized frame , durable and solid .

6. Labor saving .

Communal Nest

Double layers nest

Breeding Mode

High -low-high for layers

Leg height ( adjustable)mm

0-80

Dimension (mm)

2118*1202*1179

Hole  size (mm)

1020*470

Nest quantity /set

4

Birds/hole

42

Width of belt

250mm

Conveying speed

0-12 m/min

Maximum conveying distance

120 meter

Birds Expulsion speed

6mm/s
