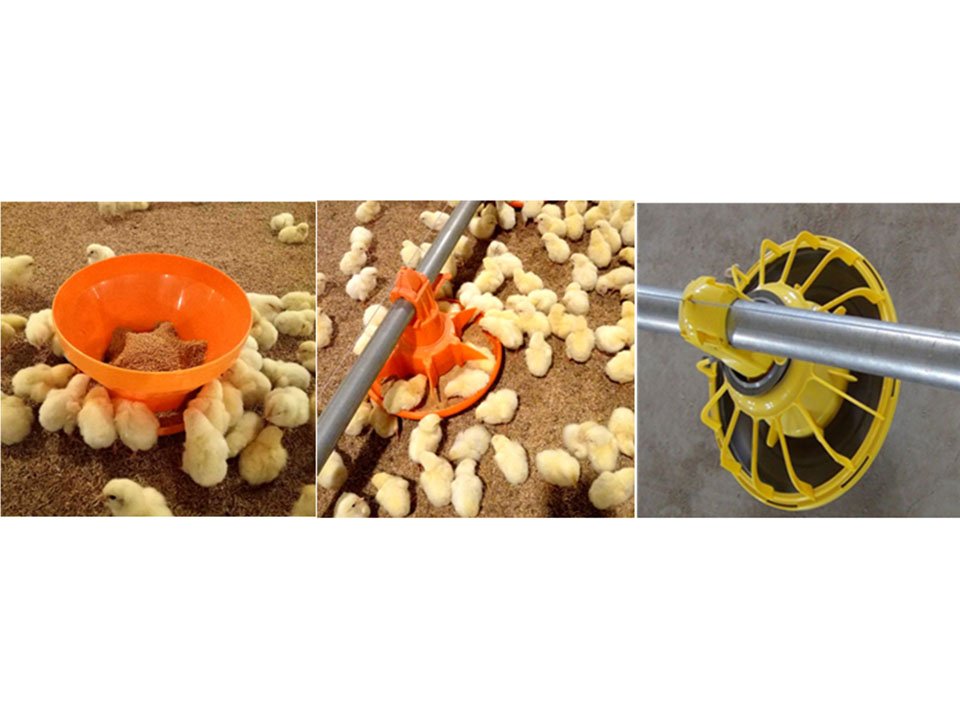

Broiler pan feeding system

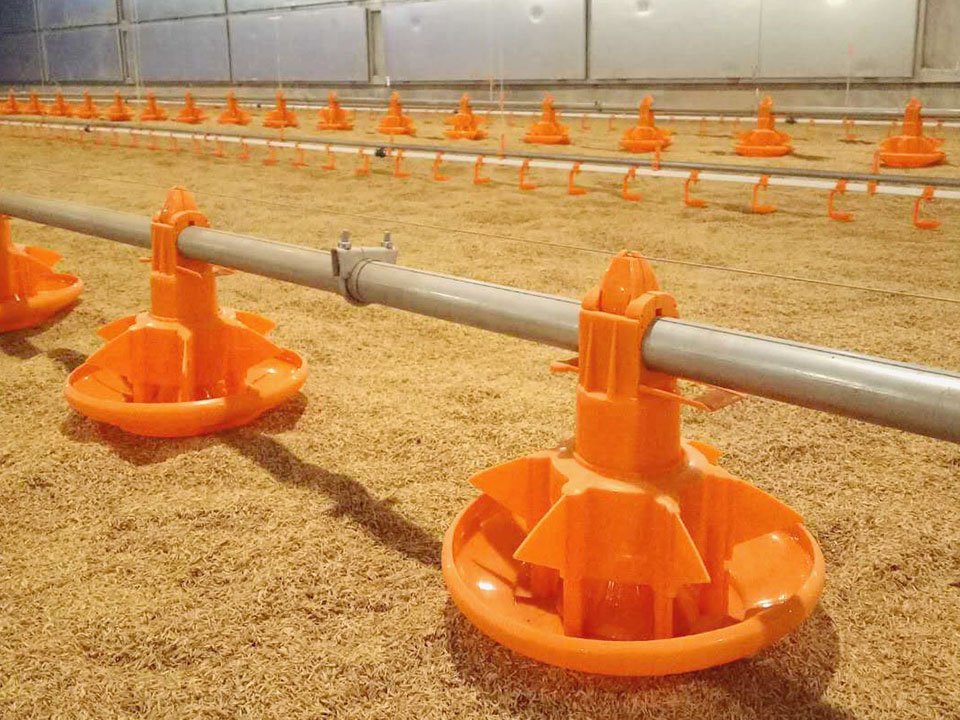

Features of feed pan without grill

1. Innovative open type pan design , one day birds easy to access to the feed .

2. Patented 6 feed level regulator can adjust the feed quantity conveniently and quickly.

3.Retaininglip minimizes feed waste , achieving a higher feed conversion ,creating greater income.

4.Providing comfortable and uniform feeding environment for birds ,accommodating 65 birds per pan (slaughter weight 2.5kg).

5. Allows partial line usage by shut-off slide .

6.100% Raw PP with anti-UV and anti-ageing material .

7.Simple head design is convenient to quick install and remove .


Features of Feed pan with grill

1.High quality 100% PP raw material, anti-corrosion and ageing .

2. 360° rotation can prevent birds injury.

3. Rotating the ring can easily adjust the feed level

4. Special feed window on dropping cone helps to monitor feed level .

6. Two ring pan bottom design keep feed inside with less feed wasted .

7. Smooth bottom edge prevents birds breast injury .

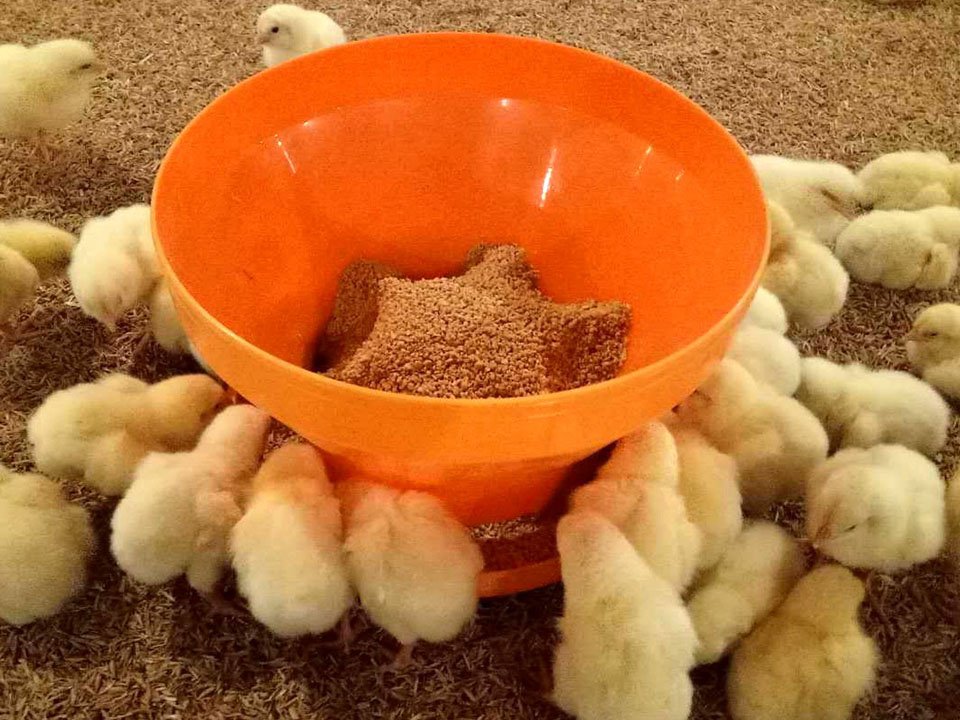

Features of chicks start feed pan

Diameter: 275mm, circumference: 864mm.

height: 188mm .

bottom diameter: 250mm, circumference: 785mm .

Bottom feeding height: 50mm .

weight: 400g.

Pan Capacity :3.5kg .

Material: Polypropylene SP179 (Pure Raw Material) .


1.Automatic Main Feeding System
Main feeding system delivery feed from silo to each vice hopper in the poultry house. There is one feed level sensor at the end of main feed line which control the motor on or off automatically .



Item

Consists goods

Specifications

1

feed silo

2.8t/4.4t/14t/16t/22t/28t or customized, hot galvanized steel or fiber   reinforced plastic

2

big feed hopper

600kg/800kg/1200kg or customized,hot galvanized or paiting material



3



drive system

Italy Transtecno brand,split motor with gear box, 1.1kW/1.5kw,220/380v,50hz,IP55,insulation   level:F

4

sensor

world top class products

5

delivery pipe

world top class,diameter 75mm or 90mm

6

auger

South Africa,model 20/060,20/071,lifetime warranty

Remarks

Silo foundation and the embedded parts should be borne by the buyer



2.Automatic Pan Feeding System
Pan feeding system deliver feed automatically through motor, There is one feed level sensor at the end of each feed line which control the motor on or off automatically ,ensure birds eat feed during whole growing period.



Item

Consists goods

Specifications

1

feed hopper

70kg or customized,hot galvanized



2



motor

Italy Transtecno brand,split motor with gear   box,0.55kw/0.75/1.1kW/1.5kw,220/380v,50hz,

IP55,insulation level:F



3



Feed pipe

3 o r4hols/3m,diameter 45mm,1.2mm thinkness,Hot galvanized 275g/m2















4















Feed pan

1. Innovative open type pan design , one day birds easy to access to   the feed .

2.   Patented 6 feed level regulator can adjust the feed quantity conveniently and   quickly.

3.Retaininglip   minimizes feed waste , achieving a higher feed conversion ,creating greater   income.

4.Providing   comfortable and uniform feeding environment for birds ,accommodating 60 birds   per pan slaughter weight 2.5kg.

5. Allows partial line usage by shut-off slide .

6.100% Raw PP with   anti-UV and anti-ageing material .

7.Simple head design is   convenient install and remove .

5

sensor

world top class products

6

winch

world top class H-3500

7

auger

South Africa,model 20/060,20/071,lifetime   warranty

8

Hanging system

China top Steel wire,nylon pulley,adjuster,etc.

9

Anti-roost system

China top Steel wire,spring,bracket,etc.


3.Nipple Drinking System

This system can provide fresh and clean water for chickens.

Item

Consists goods

Specifications

1

Waterline front part

Including filter,water meter,medicator



2



Water square pipe component

Stainless steel or plastic nipple drinker ;360° water outlet ;high   water flow ;double seal .

China top quality Square water tube   (size: 22*22mm). Light resistant pipe prevent plant inside, 3m or 4m/pcs,   10nipples,12nipples,15nipples/pcs or customized

3

Support pipe

Hot galvanized pipe,dimeter 26.7mm,



4



Water regulator

ABS material, One outlet or two   outlet, High   definition water level showing tube, Regulating distance 70m

5

Drip cup

100% Pure raw material, Smooth   edges reduce trauma to chickens,easy to install

6

winch

world top class products H-1500

7

Hanging system

China top Steel wire,nylon pulley,adjuster, etc.

8

Anti-roost system

China top Steel wire,spring,bracket,etc.


4.Automatic Ventilation Fan System
This system controls climate conditions, fresh air, humidity and temperature in poultry shed, it is vital for growing birds.

Item

Consists goods

Specifications

1

50inch fan

China top quality Butterfly cone fan or box fan,hot galvanized frame

2

36inch fan

China top quality Butterfly cone fan or box   fan,hot galvanized fram

3

54inch fan

China top quality Butterfly cone fan or box fan,hot galvanized fram



4



Cooling pad system

Pad model: 7090, 7060   or 6090

Cooling pad paper:   105g/m2, 84 sheets/widty 1500px

Glue: China top quality   glue

Coated color: can be   customized







5







Air inlet

Made of polystyrene, with UV resistant and anti-aging material.

Opening has an insulation material, to prevent condensation inside.

Air deflector on top of inlet, guides flow direction, to avoid stress   reaction of cold air.

Protecting mesh is included

Seal tightly ,length can be customized .







6







Tunnel door

Doors made of   insulation material ,to reduce heat loss when outside temperature is much   lower than inside.

Tunnel doors frame   sealed with auto industry door sealing technology ,which can prevent wind   entering and avoid stress reaction of birds.

Modular panel design,   easy and quick for installation.

Surface is   fiberglass , anti-corrosion and easy clean





5. Cooling Pad System

This system uses water evaporation effect to cool down the air going through papers . It works effectively combination with tunnel ventilation fans to keep temperature under 30°.

Item

Consists goods

Specifications





1





Cooling pad

Pad model: 7090, 7060   or 6090

Size:   1.5*0.6*0.15m,1.8*0.6*0.15m,2*0.6*0.15m

Cooling pad paper:   105g/m2, 84 sheets/widty 1500px

Glue: China top quality   glue

Coated color: can be   customized

2

Cooling pad frame

Deep PVC or Aluminum frame .

3

Water cycle

Automatic water replenishing device , save investment for customers in   water reuse system





6. Tunnel Door for Cooling Pad

In tunnel ventilation mode, adjust the air intake volume to gain suitable longitudinal ventilation speed and decrease the dead zones.



Item

Consists goods

Specifications







1







Tunnel door

Doors made of   insulation material ,to reduce heat loss when outside temperature is much   lower than inside.

Tunnel doors frame   sealed with auto industry door sealing technology ,which can prevent wind   entering and avoid stress reaction of birds.

Modular panel design,   easy and quick for installation.

Surface is   fiberglass , anti-corrosion and easy clean

2

Automatic motor

Top quality motor,   control open degree accurately



7. Curtain System

Curtain system is drop down system, including galvanized support pipe, pulley, nylon rope, curtain and winch.

Item

Consists goods

Specifications







1







curtain

1.       Curtain system is designed for open poultry houses in high   temperature area.

2.       240-260g/m2; thickness is 0.4mm ;PE material ;white ,black or gray   color .

3.       Regular width is 2.0m ; density is 15x15 per inch.

4.       With Emergency auto drop system.

5.       UV is included ,3 years guarantee .

2

curtain drive system

Top quality motor, control open area accurately

Remarks:

The drive system is optional, can use motor drive system or manual drive   system, customized per the customer's demand.



8.Automatic Spraying System
This system effectively cools, humidifies, deducts and disinfects the henhouse(the temperature is quickly reduced by 3-8 degrees centigrade within a few minutes).

Consists

Item Name

Specifications

3/8'' copper tube

tube thickness: 1mm

nylon tube

tube thickness: 2.7mm

double opening spaying sitting

copper

copper spaying nozzle

3/8'', 25-30mm

copper T-connection part

3/8''

ball valve

3/8''

valve connection

3/8''

direct connection

copper

L-shaped connection

copper

mobile main spaying machine

3.7kW

high pressure hose

reliable and long service life

high pressure slow shock tube

reliable and long service life

filter

reliable and long service life

 Remarks:

1.The main spaying machine adopts Taiwan brand product, high temperature automatic protection device, the water absorption capacity is 20-38L/minute;
2.Nylon tupe adopts the import products, pressure bearing capacity is 30-90kg, corrosion resistance;
3.Pipeline and spraying sitting 's pressure bearing capacity is 100kg;
4.Filtration system using honeycomb filter, 400 hole filtering mesh.

9. Gas Heating System

1. Propane and natural gas configurations.

2. Spark, hot surface or pilot light ignition types.

3. Manually adjustable variable rate valve (50% to 100%) or fixed rate heat output.

4. Advanced Service Saver (a built-in electronic diagnostic feature).

5. Solid case construction.

6.Indoor or outdoor installation.

Parameter

Max  power output (KW)

73.3

Btu/h  Rating

160,000-250,000

Ignition Types

Hot Surface/Spark/Pilot

LPGKGS/HR

5.26

LNGcubic meter/ HR

7.08

Butane/PropaneKGS/HR

5.26

Warm wind outputcubic eter/HR

1,885

MAXKPA

3.40

MINKPA

2.74/1.75/2.74

Electrical  Supply   (Voltz/Hz/Phase)

220-240/50/1

Motor

1/3  H.P.  1100 RPM

AMPERESTART/RUNNING

7.5   /2.6

Cabinet

Galvanized Steel

Dimension

L   = 30.8"/W =   18.3"/H = 28.3"

Net .WeightKG

52.62


 10. Broiler Plastic Salt System

Poultry slat can offer a clean environment for birds in the house .

Features

1. Smooth surface avoid damage the birds feet and breast .

2. Big load bearing 250kg/piece .

3. Reinforcement treatment Prevent deformation .

4. Special design hole , keep slat clean.

5. Plug-in design , easy installation and dissemble .

6. Height is adjustable based on different type of birds .

7. Anti-UV Raw PP material , 10-15 years ' service life .

parameter

Weight :

2.0 kg or 2.3 kg

Dimensions:

1200mm*495mm

Hole size:

26×16mm(used for poultry, duck in growing period)

Hole size:

16×16mm(used for duck in growing period

11.Lighting System ILOX

1. Dimmable with flicker free lighting

2. Wide beam angle

3. Soft start dimming

4. Up to 90% energy saving compared to incandescent bulbs

LED energy saving lamp   8W(900lm=70W incandescent bulb)

5. Perfectly dimmable from 0 to 100% brightness with ilox-dimmer EPU-1500 or DCE(=trailing-edge-principle)

6. High water and dust protection, IP67

Item

Consists goods

Specifications

1

LED lamp

60*116mm/AC200-240/18(18S)/PF>0.8/CRI>80/185°/2900-3200K/8

2

Flat wire

2*1.5m2/13.3 x 5.5   mm  Green Color Gernmany Standard

3

Waterproof end

Gernmany Imported

4

Dimmer

EPU-1500 Gernmany Imported


 12.Environment Control System
This system saves the labor and the resources under the condition of assuring the optimum growth environment of the chickens. It is imported from Israel can set an optimum working mode according to the local climate and raising environment.

Consists

Item Name

Specifications

environmental controller

Temptron607/610/616, AC-2000 PLUS,   Rotem Platinum PLUS

environmental sensor

world top class products

humidity sensor

world top class products

negative pressure gauge

world top class products

power box

reliable and long service life

main control box(with alarm)

reliable and long service life

sub control box

reliable and long service life
