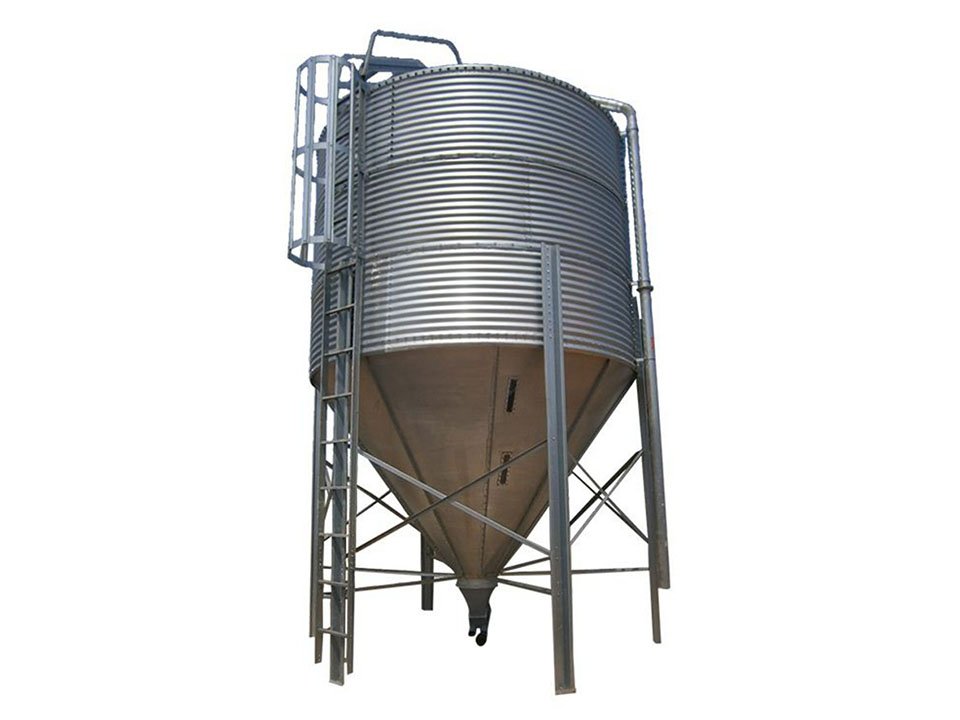

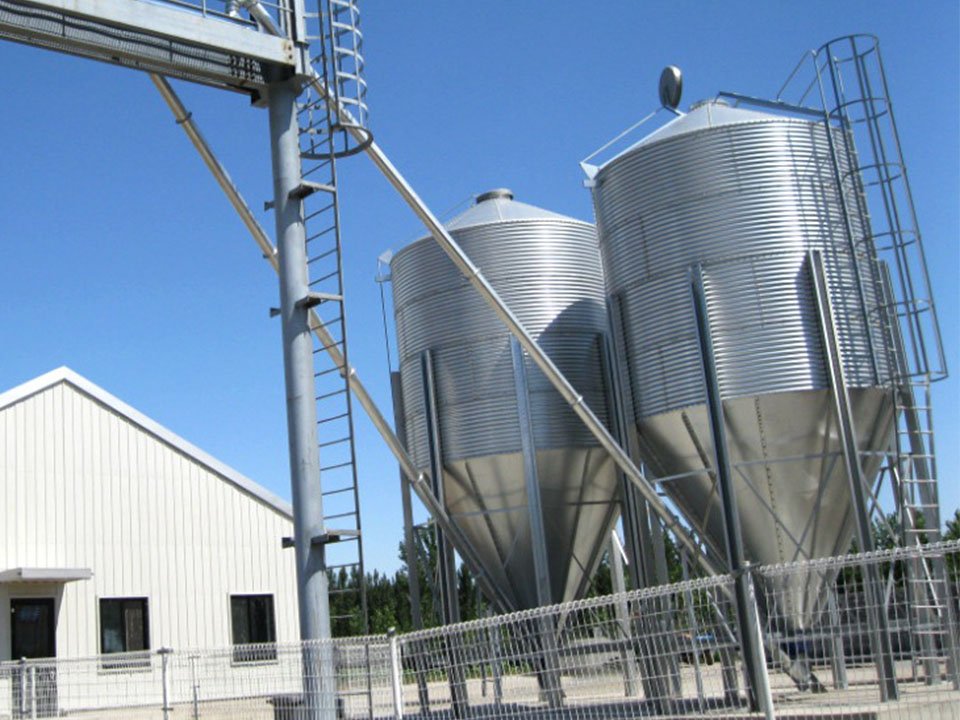

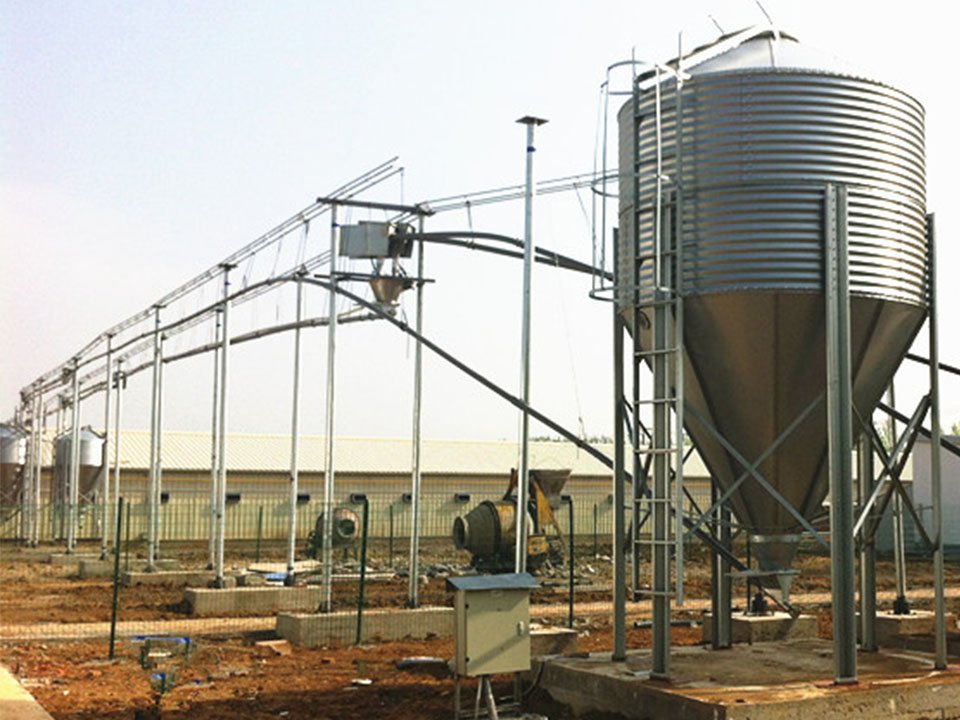

Main feeding line silo and hopper

Main feeding line system

1. 275g/㎡ two-sided galvanized sheet with the features of high intensity, anti-corrosion, long service life and easy to install.

2. 3 different specifications and 9 model numbers can meet the different feed storage requirements.

3. Special top cover opener design, easy to operate in windy weather.

4. Special designed brim on the joint of hopper body and hopper panel and seal strip between panel sheets can prevent rainwater entering the silo to cause moldy.

5. Special designed hopper panel can avoid feed piling up.

Equipped ladder and window are convenient for maintaining the equipment and checking feed condition.

6. Different boot and outlet can fulfill complex feed conveying requirements.

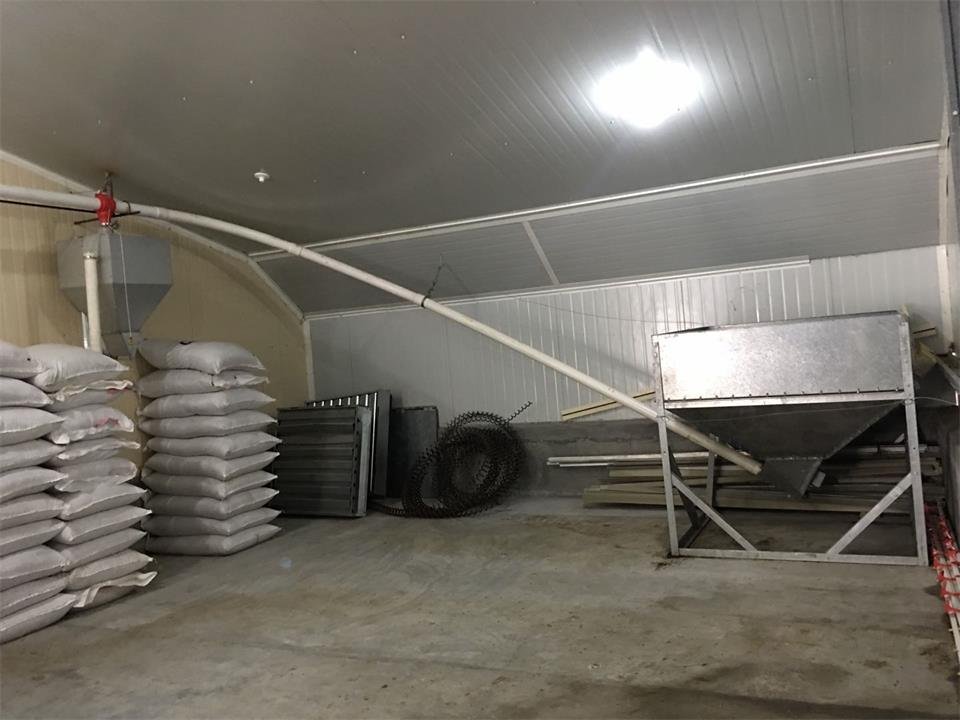

7.Customized pneumatic feeding system.


Diameter 1.834m silo w/60 hopper

Model

Cubic measure( m3)

Capacity( t)

Height(m)

DC-1801

4.4

2.8

4.1

DC-1802

6.8

4.4

5.0

DC-1803

9.2

6.0

5.9

Diameter 2.750m silo w/60 hopper

DC-2701

11.7

7.6

4.7

DC-2702

16.9

11.0

5.6

DC-2703

22.1

14.3

6.5

Diameter 3.668m silo w/60 hopper

DC-3601

24.5

16

5.7

DC-3602

33.8

22

6.6

DC-3603

43.1

28

7.5
