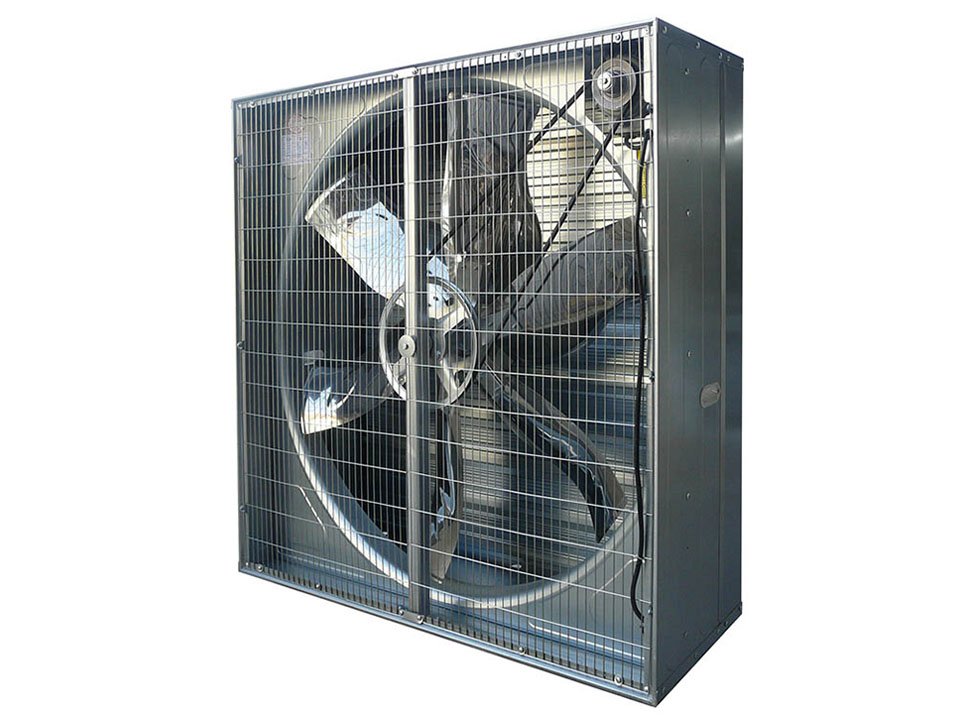

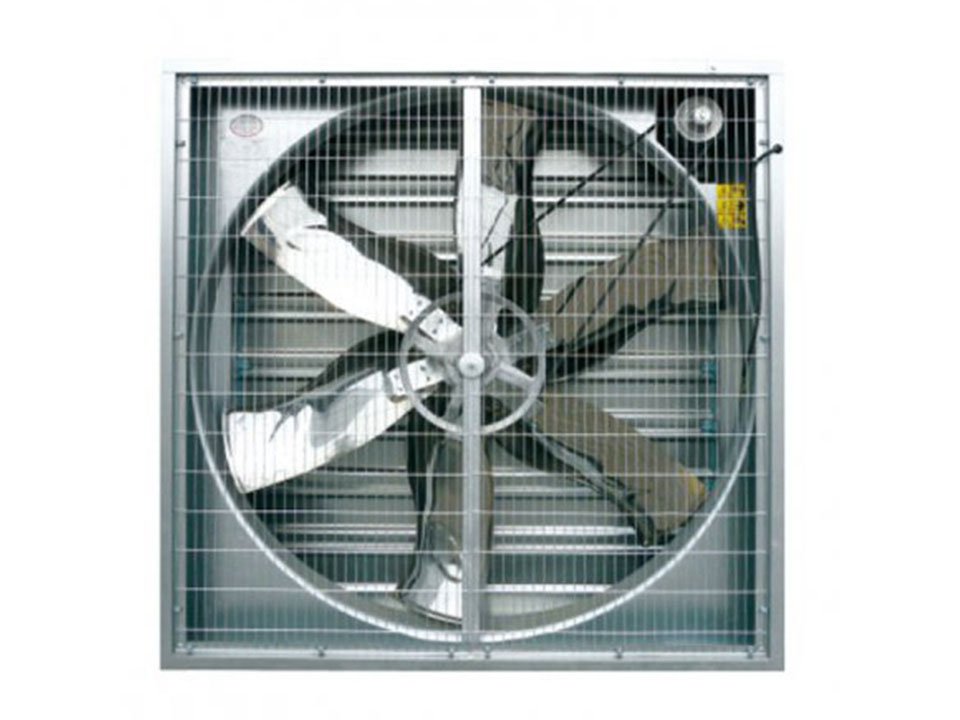

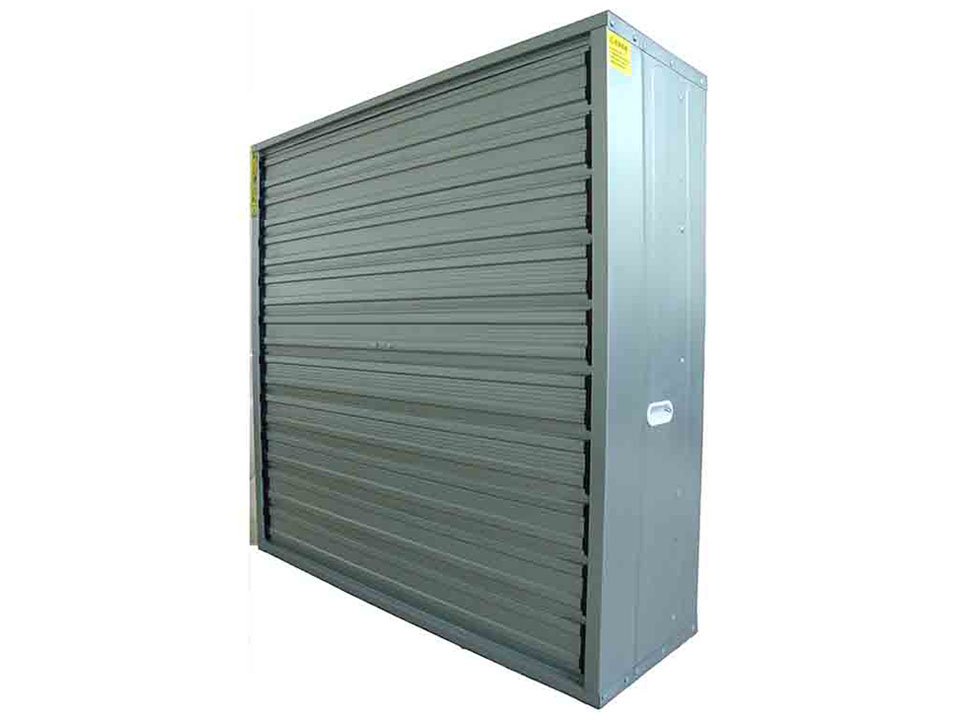

50" & 36" box fan Parameter

275G/m2Galvanized steel , stainless steel blade

Size: 36inch ,50inch and 54inch ,box fan or cone fan

Motor :Siemens motor ,WanGao motor

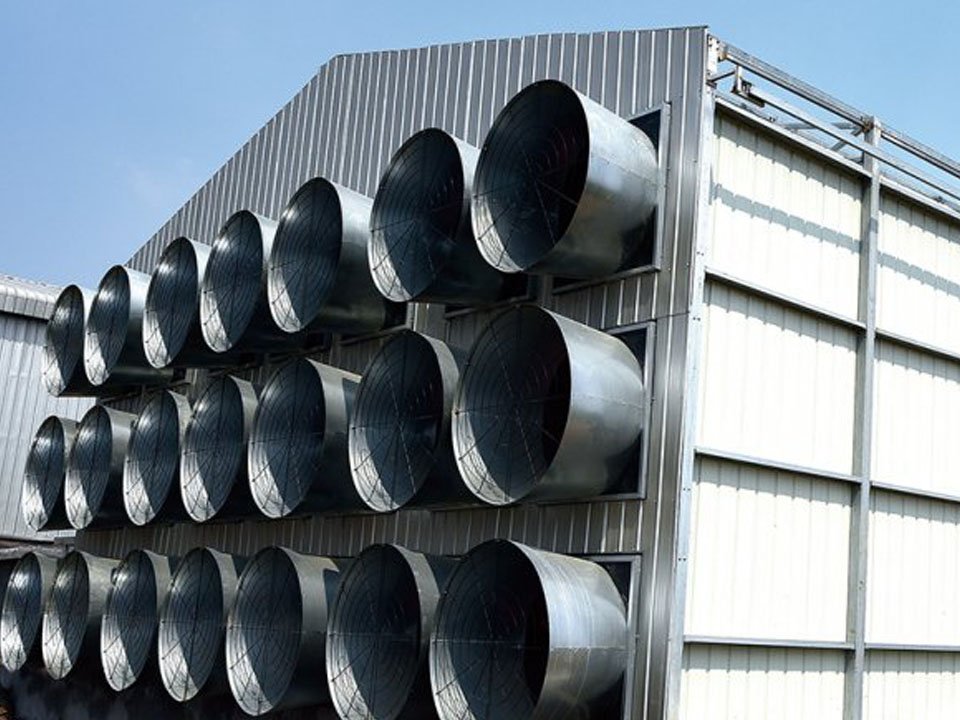

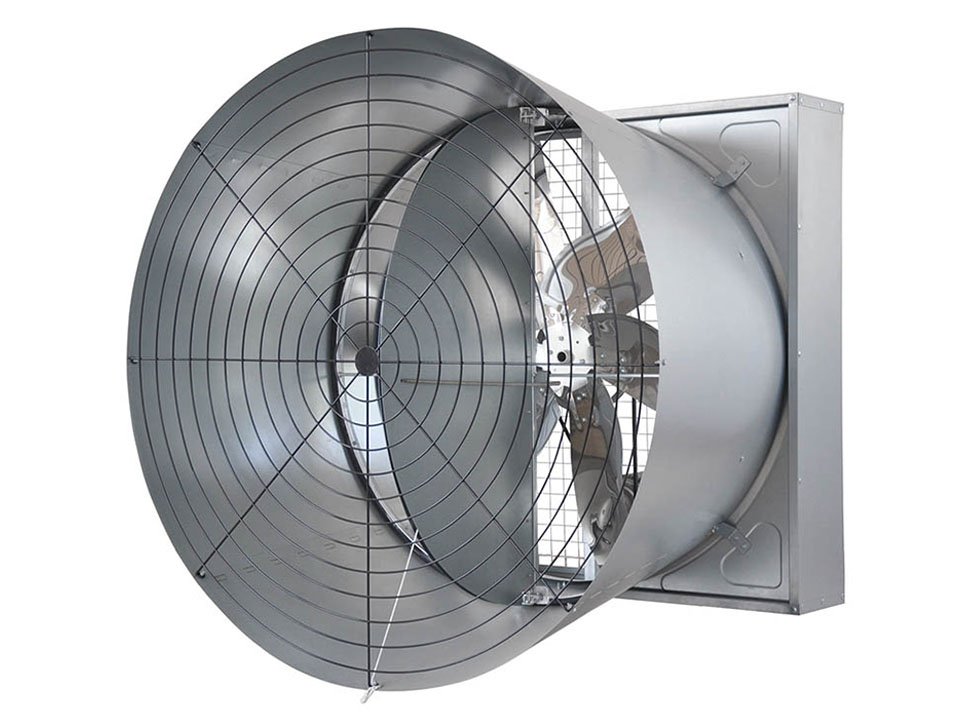

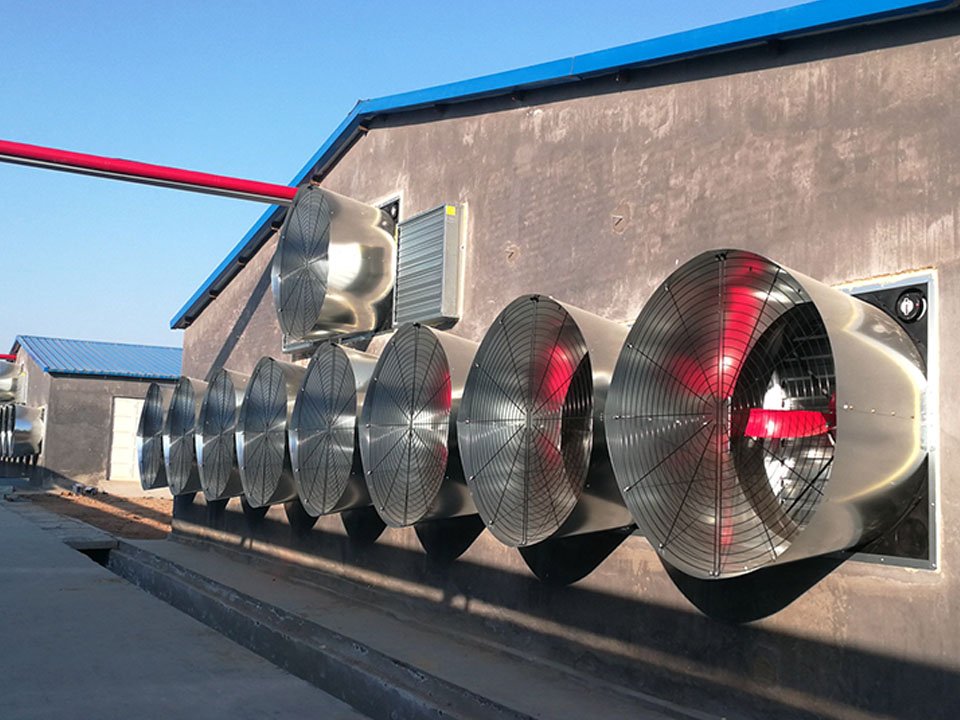

54” “Cone butterfly fan

275G/m2Galvanized steel , stainless steel blade

Size: 36inch ,50inch and 54inch ,box fan or cone fan

Motor :Siemens motor ,WanGao motor




50" & 36" box fan Parameter

Model

50”

36”

Diameter   of Blade (mm)

1270

910

Rated   Voltage (V)

380/220

380/220

Rated   Current (A)

1.1/1.5

0.4/0.55

Input   Power (kw)

2.8

1.6

Motor   Speed (r/min)

1440

1400

Air   Flow (m³/h)

43500

20800

Noise   (db)

≤62

≤62

Installation   Dimension (mm)

1380*1380*450

1000*1000*4500



54” “Cone butterfly fan

Model

54 inch

Size

1500*1500

Wind way

 3

Motor

Siemens or Wangao

Motor power

1.1 kw

Motor speed

1425rpm

Connect of motor and fan

Notched belt transmission

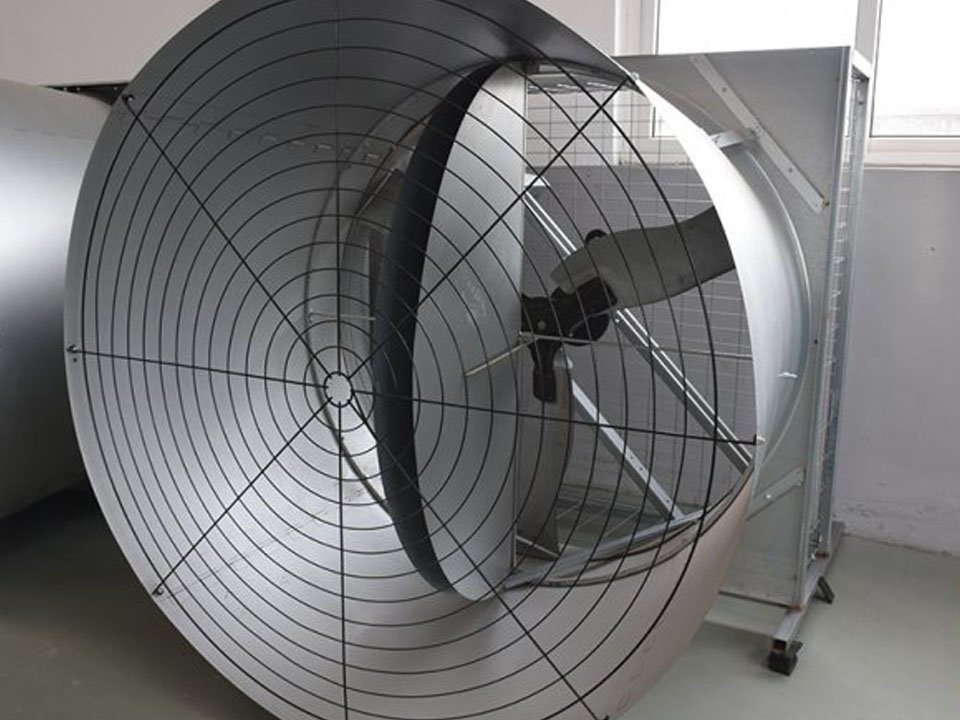

50" butterfly cone fan

Diameter   of Blade (mm)

1270

Rated   Voltage (V)

380/220

Rated   Current (A)

1.1/1.5

Input   Power (kw)

2.8

Motor   Speed (r/min)

1440

Air   Flow (m³/h)

51020

Noise   (db)

≤65

Installation   Dimension (mm)

1380*1380*1300
