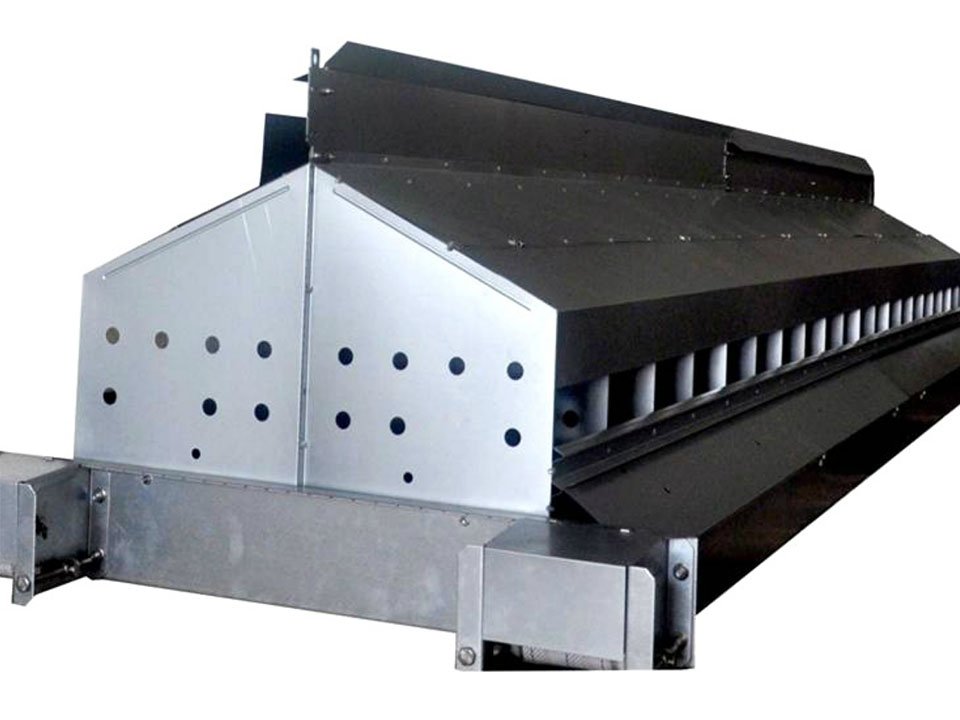

Auto egg nest

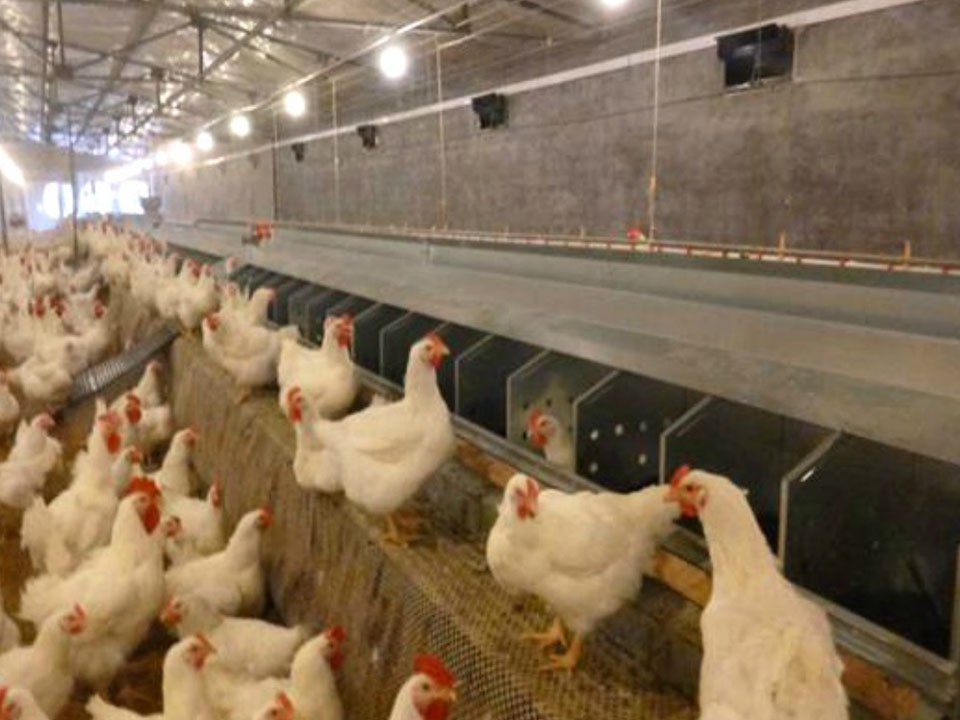

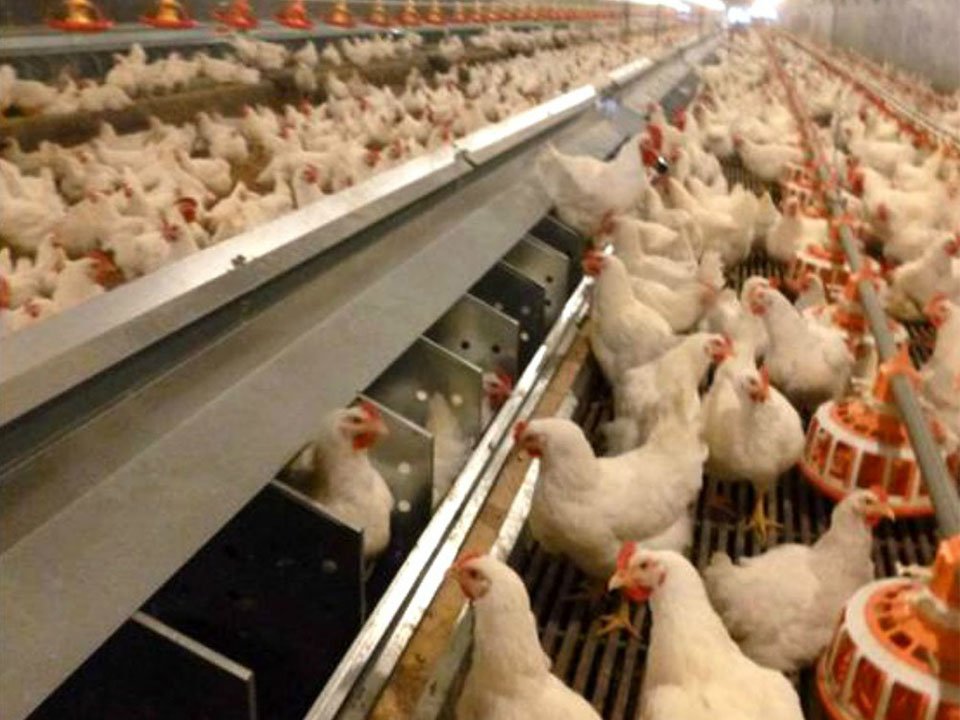

Automatic poultry nest for breeders and commercial layers



Learning from American advanced design.

2. Spacious, oxygen rich nest box guarantees a maximum nest acceptance by broiler breeders as well as commercial layers, reducing floor eggs .

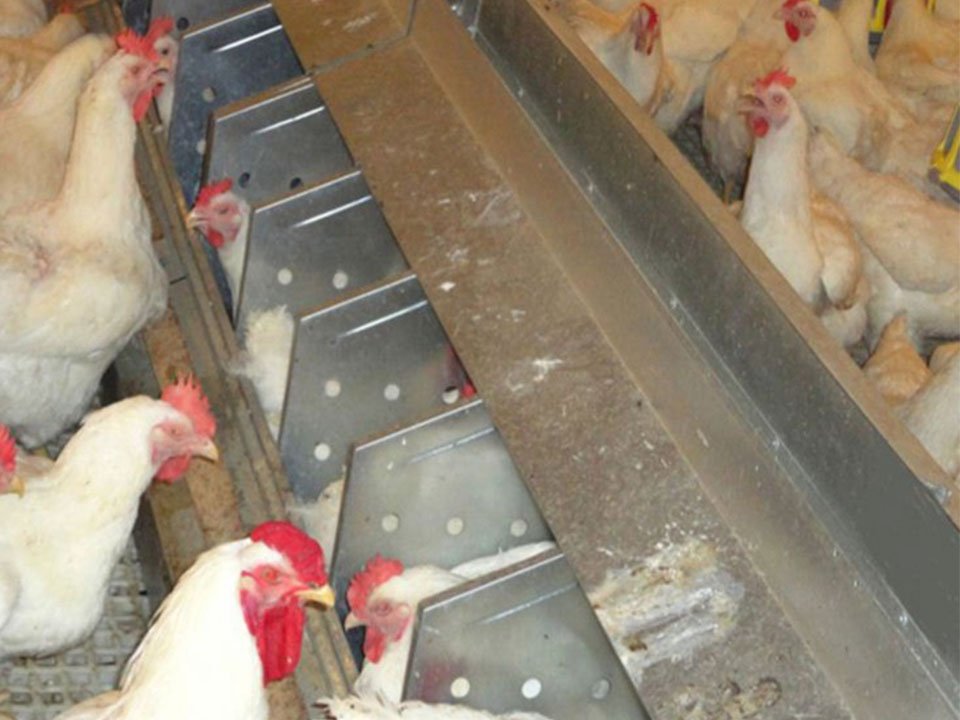

3. Individual holes design to avoid mutual interference.

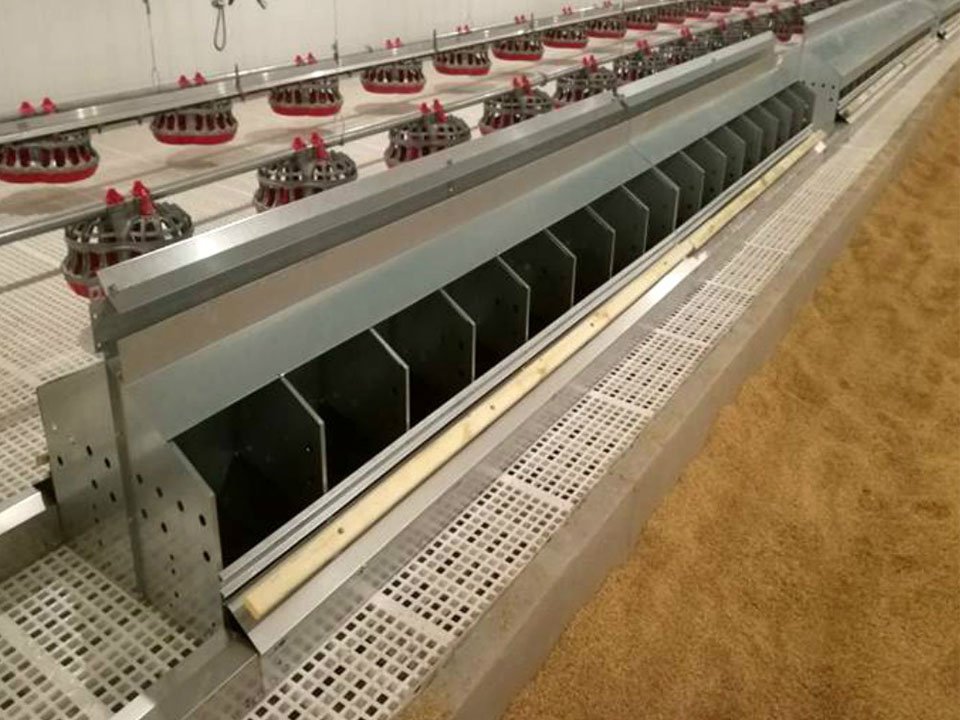

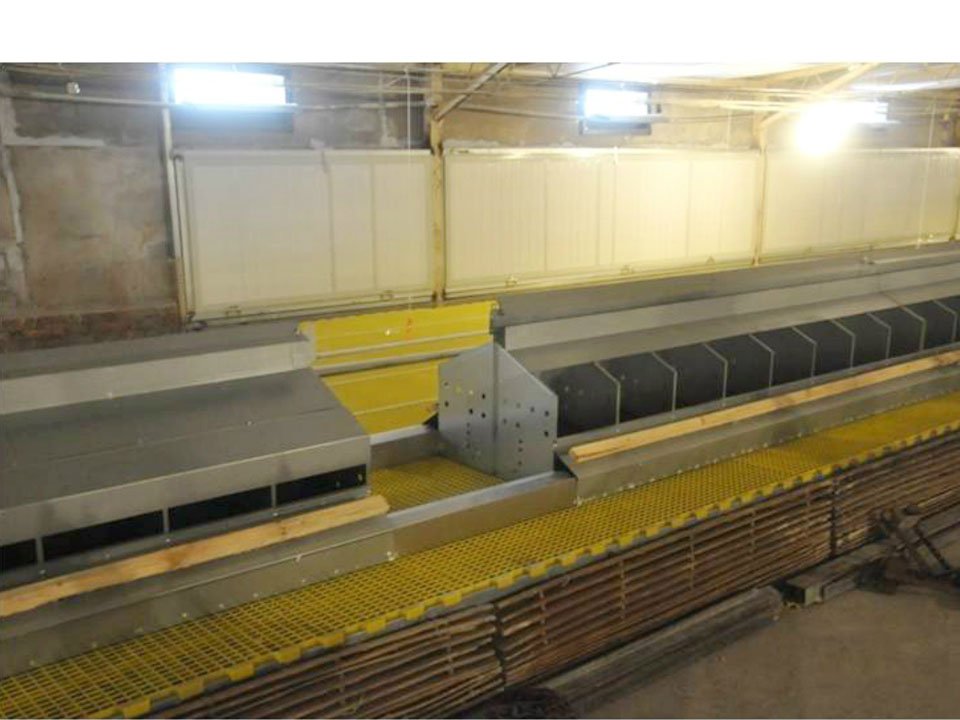

4.Considering of breeder raising request , we make a Stainless steel passage way between every two nests.

5. Set with cover at nest exit to prevent the hen from brooding in nest.

6. whole nest system is suspended.

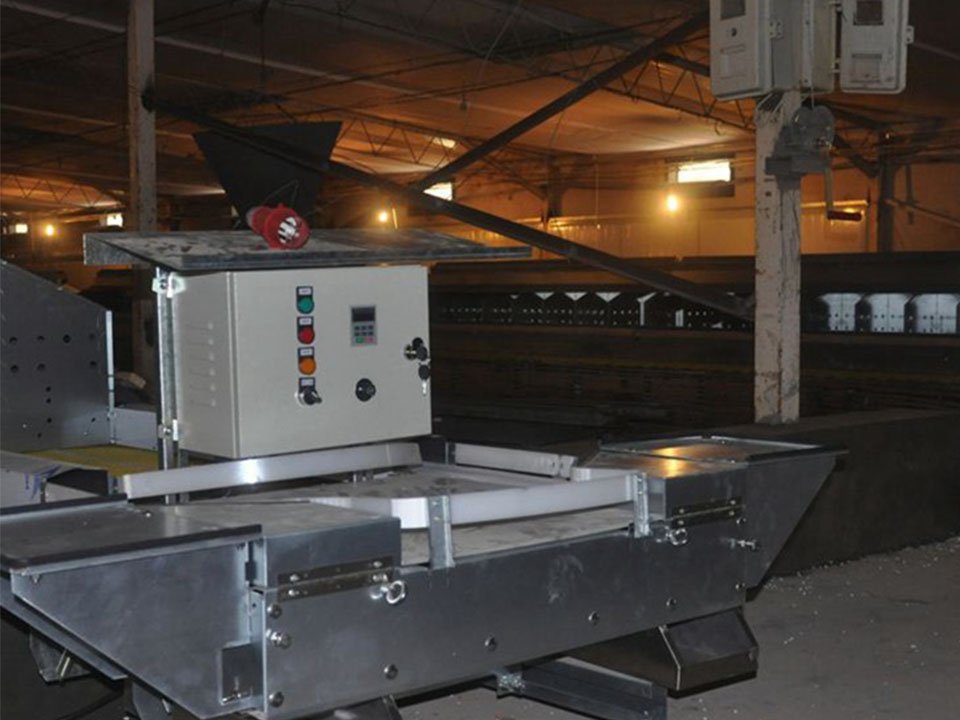

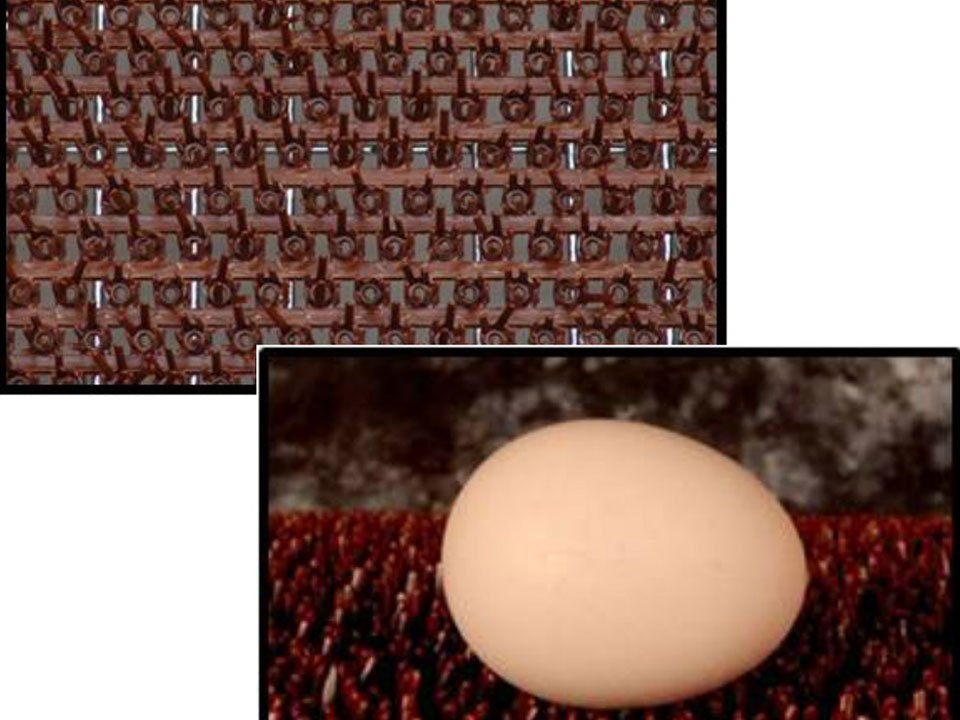

7.Egg belt, grass bedding and motor are European imported; Chint or customized Electronic Components for control box.

8. Increase fertility rate . 0.5%-1.0%。



Automatic Egg laying nest (  16 holes )

Automatic Egg laying Nest for Broiler Breeder (16 holes)

Out dimension (mm)

2300*860*625

2440*860*625

Hole size

16 holes

16holes

Width (mm)

285

303

Depth (mm)

330

330

Capacity

6-6.5birds/hole

6-6.5birds/hole


Automatic Egg laying Nest (20 holes)

Automatic Egg laying Nest for Layer Breeder or Commercial Layers (20 holes)

Out dimension (mm)

2440*860*625

Hole size

20 holes

Width (mm)

244

Depth (mm)

330

Capacity

7-7.5birds/hole
