1. High feed conveying ability , 36m/minute, 2.0 ton per hour ;Even and quick feed delivery .
2. Stable working , low fault rate , low maintenance cost , long service life .
3. Different motor capacity due to different house length.
4. High rigid 90° cast- iron corner , good corrosion and wearing resistance .
5. 275g/m2 hot galvanized steel hopper with feed return wheel ,preventing feed overflowing ; Hopper size can be customized .
6. South Africa chain , quality reliable , lifetime warranty .
7.Feed line height is easy to be adjusted according to birds age .
Stocking density (birds/m2) | 4.5 -5.0birds |
No. of birds/m of feed trough | 10-13 birds/m |
Feeding type | Controlled |
1.Automatic Main Feeding System
Main feeding system delivery feed from silo to each vice hopper in the poultry house. There is one feed level sensor at the end of main feed line which control the motor on or off automatically .
Item | Consists goods | Specifications | |
1 | feed silo | 2.8t/4.4t/14t/16t/22t/28t or customized, hot galvanized steel or fiber reinforced plastic | |
2 | big feed hopper | 600kg/800kg/1200kg or customized,hot galvanized or paiting material | |
3 | drive system | Italy Transtecno brand,split motor with gear box,1.1kW/1.5kw,220/380v,50hz,IP55,insulation level:F | |
4 | sensor | world top class products | |
5 | delivery pipe | world top class,diameter 75mm or 90mm | |
6 | auger | South Africa,model 20/060,20/071,lifetime warranty | |
Remarks | Silo foundation and the embedded parts should be borne by the buyer | ||

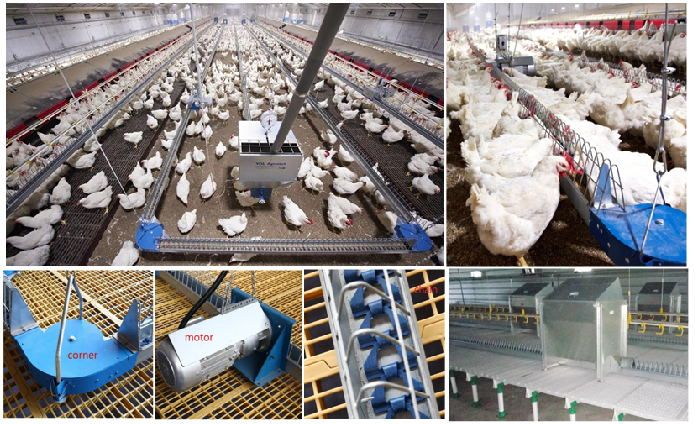

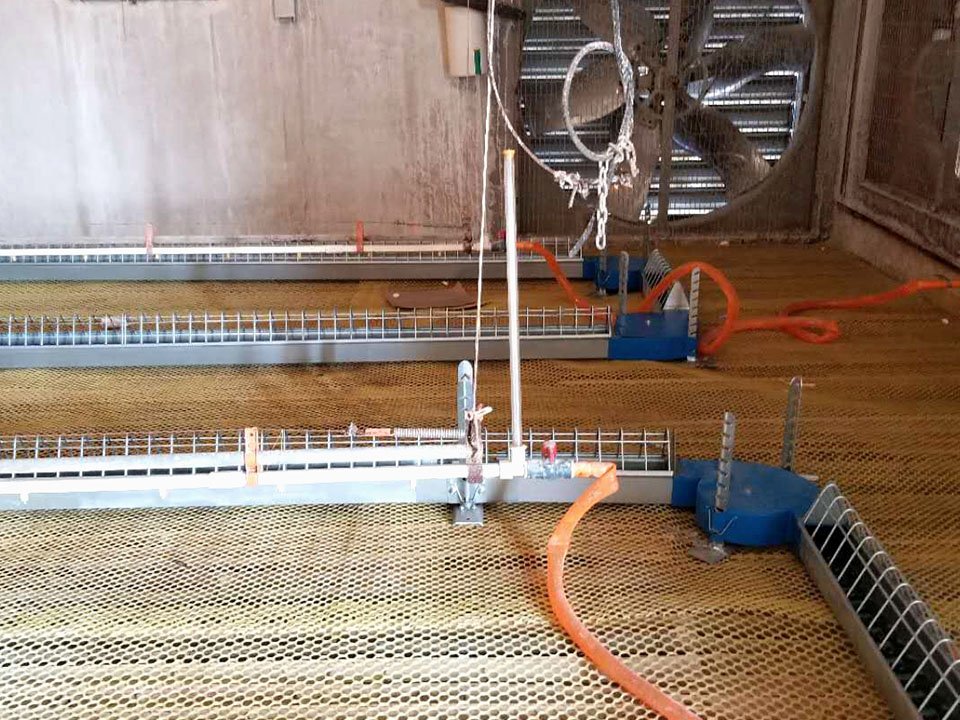

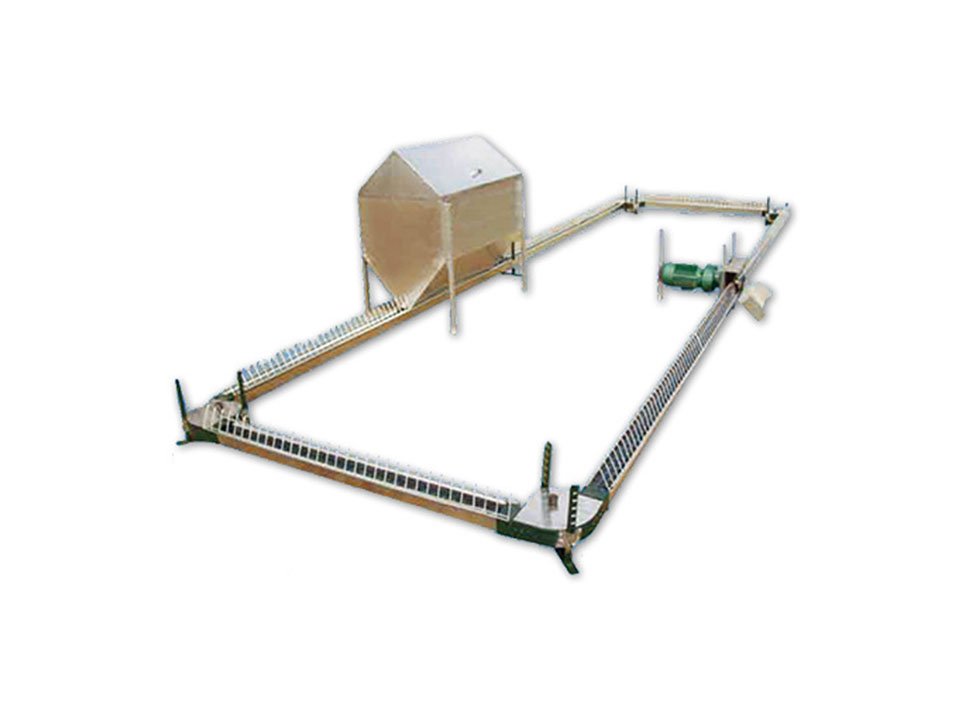

2.Automatic Breeder Chain Feeding System
Chain feeding system has high feed conveying ability,36m/minute, 2.0 ton per hour ;Evenly and quickly feed delivery ; Stable working , low fault rate , low maintenance cost , long service life .

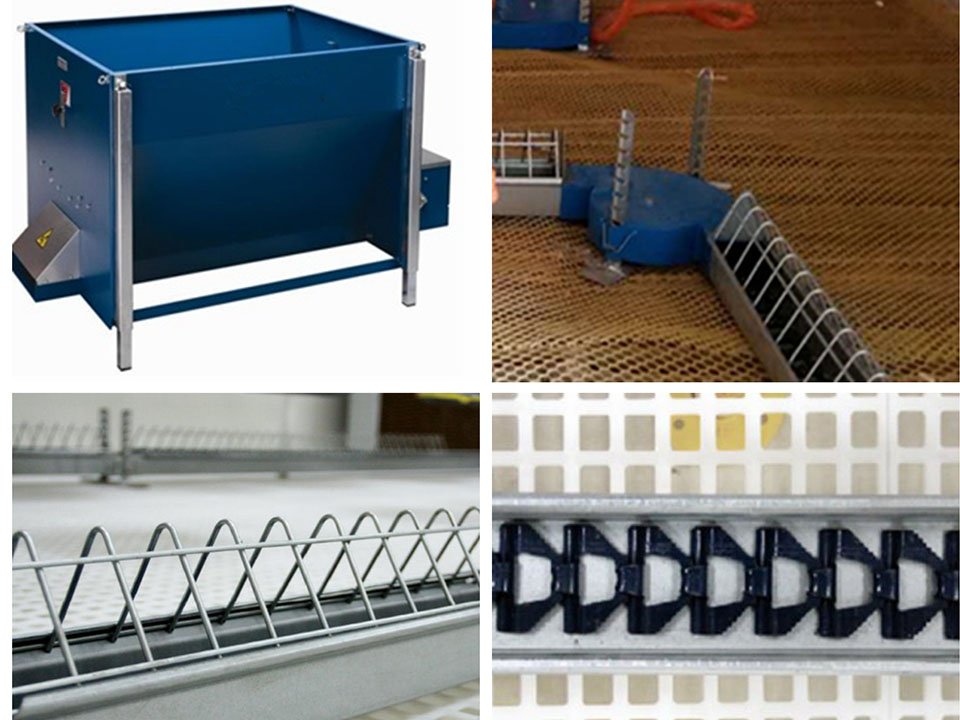

Item | Consists goods | Specifications |
1 | Loop hopper | ZYZJO-220/280/350KG,including cover,block chicken plate |
2 | motor | Direct drive motor ,1.5kw/2.2kw,,220/380v,50hz, IP55,insulation level:F conveying speed:36m/s |
3 | Feed trough | Bottom width 85mm, top width 95mm, High 78mm, hot galvanized ,3m/pcs |
4 | Feed grille | L = 1.48 m,4micro |

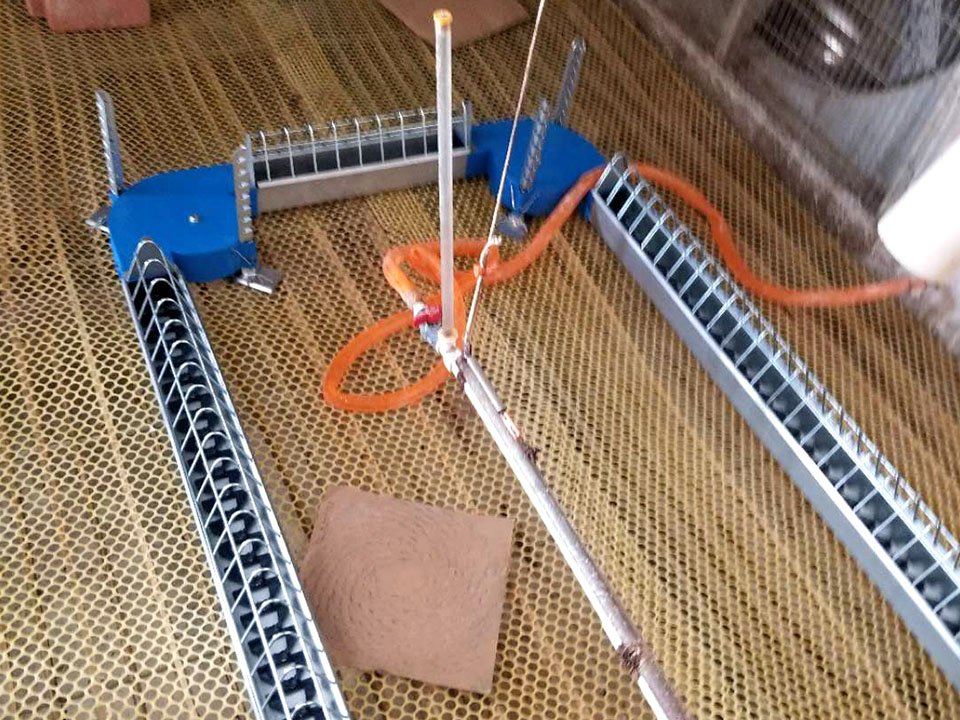

5 | Corner | 90° cast- iron,good corrosion and wearing resistance |
6 | Auto winch | DWFH-100-1.1KW with roller , support base and bolts |

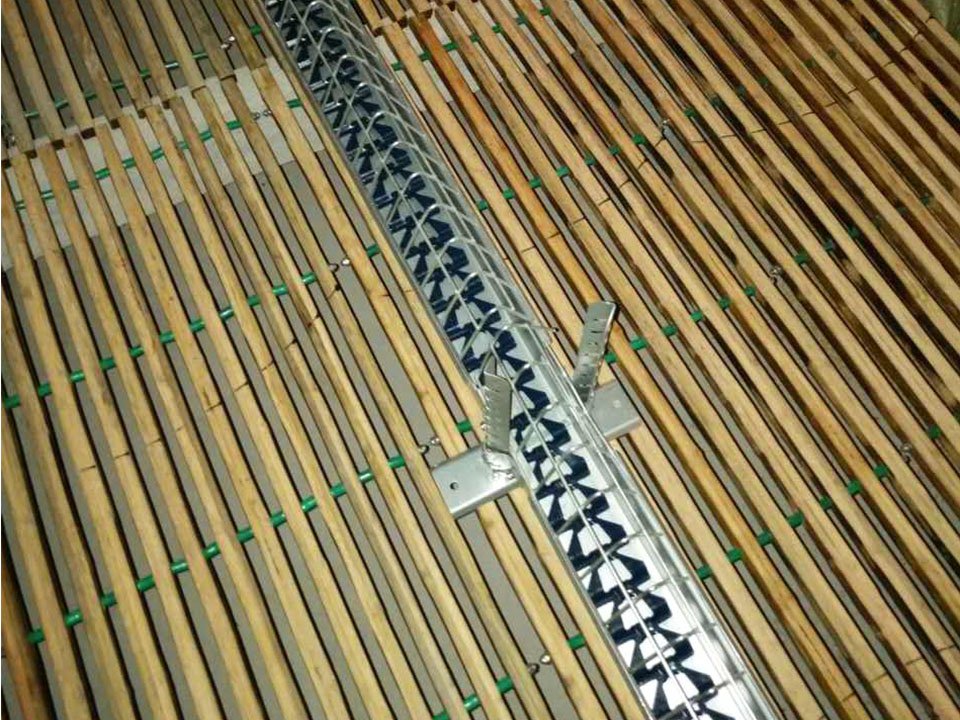

7 | Flat chain | South Africa, . Smooth chain feed conveying system delivery feed to each pan evenly |
8 | Hanging system | China top Steel wire, pulley,adjuster,etc. |
Remarks: | Two type can choose: bracket type and suspension type |
3.1 Automatic Male Cylinder Feeding System
Accurate cylinder ensures that the males can eat at the same time.
Item | Consists goods | Specifications |
1 | feed hopper | 70kg or customized,hot galvanized |
2 |
motor | Italy Transtecno brand,split motor with gear box,0.55kw/0.75/1.1kW/1.5kw,220/380v,50hz, IP55,insulation level:F |
3 | Feed pipe | φ45,3040mm/pcs,hole size26*20mm,diameter 45mm,1.2mm thinkness,Hot galvanized 275g/m2 |
4 |
Feed cylinder | 1). Accurate feeding improves flock uniformity 2). All male birds can eat Simultaneously to get higher fertilization rate. 3).Large-diameter (Φ400mm×18bit) multi-position design Of feed barrel , can avoid of birds crowding and injury . 4). Simple and easy feed level adjustment , labor saving |
5 | sensor | world top class products |
6 | winch | world top class H-3500 |
7 | auger | South Africa,model 20/060,20/071,lifetime warranty |
8 | Hanging system | China top Steel wire,nylon pulley,adjuster,etc. |
9 | Anti-roost system | China top FI-shock,Steel wire,spring,bracket,etc. |
3.2 Automatic Male pan Feeding System
If don’t like cylinder,you can choose the follwing pan feeding system
Item | Consists goods | Specifications |
1 | feed hopper | 70kg or customized,hot galvanized |
2 |
motor | Italy Transtecno brand,split motor with gear box,0.55kw/0.75/1.1kW/1.5kw,220/380v,50hz, IP55,insulation level:F |
3 |
Feed pipe | 3 or4 hols/3m,diameter 45mm,1.2mm thinkness,Hot galvanized 275g/m2 |
4 |
Feed pan | 1. Innovative open type pan design , one day birds easy to access to the feed . 2. Patented 6 feed level regulator can adjust the feed quantity conveniently and quickly. 3.Retaininglip minimizes feed waste , achieving a higher feed conversion ,creating greater income. 4.Providing comfortable and uniform feeding environment for birds 5. Allows partial line usage by shut-off slide . 6.100% Raw PP with anti-UV and anti-ageing material . 7.Simple head design is convenient install and remove . |
5 | sensor | world top class products |
6 | winch | world top class H-3500 |
7 | auger | South Africa,model 20/060,20/071,lifetime warranty |
8 | Hanging system | China top Steel wire,nylon pulley,adjuster,etc. |
9 | Anti-roost system | China top FI-shock,Steel wire,spring,bracket,etc. |
4.Nipple Drinking System
This system can provide fresh and clean water for chickens.
Item | Consists goods | Specifications |
1 | Waterline front part | Including filter,water meter,medicator |
2 |
Water square pipe component | Stainless steel or plastic nipple drinker ;360° water outlet ;high water flow ;double seal . China top quality Square water tube (size: 22*22mm). Light resistant pipe prevent plant inside, 3m or 4m/pcs, 10nipples,12nipples,15nipples/pcs or customized |
3 | Support pipe | Hot galvanized pipe,dimeter 26.7mm, |
4 |
Water regulator | ABS material, One outlet or two outlet, High definition water level showing tube, Regulating distance 70m |
5 | Drip cup | 100% Pure raw material, Smooth edges reduce trauma to chickens,easy to install |
6 | winch | world top class products H-1500 |
7 | Hanging system | China top Steel wire,nylon pulley,adjuster, etc. |
8 | Anti-roost system | China top Steel wire,spring,bracket,etc. |
5.Automatic Ventilation System
Ventilation system controls climate conditions, fresh air, humidity and temperature in poultry shed, it is vital for growing birds.
Item | Consists goods | Specifications |
1 | 50inch fan | China top quality Butterfly cone fan or box fan,hot galvanized frame |
2 | 36inch fan | China top quality Butterfly cone fan or box fan,hot galvanized frame |
3 | 54inch fan | China top quality Butterfly cone fan or box fan,hot galvanized frame |
4 |
Cooling pad system | Pad model: 7090, 7060 or 6090 Cooling pad paper: 105g/m2, 84 sheets/widty 1500px Glue: China top quality glue Coated color: can be customized |
5 |
Air inlet | Made of polystyrene, with UV resistant and anti-aging material. Opening has an insulation material, to prevent condensation inside. Air deflector on top of inlet, guides flow direction, to avoid stress reaction of cold air. Protecting mesh is included Seal tightly ,length can be customized . |
6 |
Tunnel door | Doors made of insulation material ,to reduce heat loss when outside temperature is much lower than inside. Tunnel doors frame sealed with auto industry door sealing technology ,which can prevent wind entering and avoid stress reaction of birds. Modular panel design, easy and quick for installation. Surface is fiberglass , anti-corrosion and easy clean |
6. Light Trap System
Light trap with reasonable wave to keep a good light proof.
Features
1. With high quality PVC material, Chemical resistance.
2. 100% light proof to keep a good light control for chicken house.
3. Easy for installing and cleaning.
4. size is customized.
Parameter
Item | Size |
Light trap for 50" fan | 1380*1380*200mm |
Light trap for 36" fan | 1000*1000*200mm |
Light trap for air inlet | Customized |
7. Cooling Pad System
This system uses water evaporation effect to cool down the air going through papers . It works effectively combination with tunnel ventilation fans to keep temperature under 30°.
Item | Consists goods | Specifications |
1 |
Cooling pad | Pad model: 7090, 7060 or 6090 Size: 1.5*0.6*0.15m,1.8*0.6*0.15m,2*0.6*0.15m Cooling pad paper: 105g/m2, 84 sheets/widty 1500px Glue: China top quality glue Coated color: can be customized |
2 | Cooling pad frame | Deep PVC or Aluminum frame . |
3 | Water cycle | Automatic water replenishing device , save investment for customers in water reuse system |
8. Tunnel Door for Cooling Pad
In tunnel ventilation mode, adjust the air intake volume to gain suitable longitudinal ventilation speed and decrease the dead zones.
Item | Consists goods | Specifications |
1 |
Tunnel door | Doors made of insulation material ,to reduce heat loss when outside temperature is much lower than inside. Tunnel doors frame sealed with auto industry door sealing technology ,which can prevent wind entering and avoid stress reaction of birds. Modular panel design, easy and quick for installation. Surface is fiberglass , anti-corrosion and easy clean |
2 | Automatic motor | Top quality motor, control open degree accurately |
9. Curtain System
Curtain system is drop down system, including galvanized support pipe, pulley, nylon rope, curtain and winch.
Item | Consists goods | Specifications |
1 |
curtain | 1. Curtain system is designed for open poultry houses in high temperature area. 2. 240-260g/m2; thickness is 0.4mm ;PE material ;white ,black or gray color . 3. Regular width is 2.0m ; density is 15x15 per inch. 4. With Emergency auto drop system. 5. UV is included ,3 years guarantee . |
2 | curtain drive system | Top quality motor, control open area accurately |
Remarks: | The drive system is optional, can use motor drive system or manual drive system, customized per the customer's demand. |
10.Automatic Spraying System
This system effectively cools, humidifies, deducts and disinfects the henhouse(the temperature is quickly reduced by 3-8 degrees centigrade within a few minutes).
Consists | Item Name | Specifications |
3/8'' copper tube | tube thickness: 1mm | |
nylon tube | tube thickness: 2.7mm | |
double opening spaying sitting | copper | |
copper spaying nozzle | 3/8'', 25-30mm | |
copper T-connection part | 3/8'' | |
ball valve | 3/8'' | |
valve connection | 3/8'' | |
direct connection | copper | |
L-shaped connection | copper | |
mobile main spaying machine | 3.7kW | |
high pressure hose | reliable and long service life | |
high pressure slow shock tube | reliable and long service life | |
filter | reliable and long service life |
Remarks:
1.The main spaying machine adopts Taiwan brand product, high temperature automatic protection device, the water absorption capacity is 20-38L/minute;
2.Nylon tupe adopts the import products, pressure bearing capacity is 30-90kg, corrosion resistance;
3.Pipeline and spraying sitting 's pressure bearing capacity is 100kg;
4.Filtration system using honeycomb filter, 400 hole filtering mesh.
11. Gas Heating System
1. Propane and natural gas configurations.
2. Spark, hot surface or pilot light ignition types.
3. Manually adjustable variable rate valve (50% to 100%) or fixed rate heat output.
4. Advanced Service Saver (a built-in electronic diagnostic feature).
5. Solid case construction.
6.Indoor or outdoor installation.
Parameter
Max power output (KW) | 73.3 |
Btu/h Rating | 160,000-250,000 |
Ignition Types | Hot Surface/Spark/Pilot |
LPG(KGS/HR) | 5.26 |
LNG(cubic meter/ HR) | 7.08 |
Butane/Propane(KGS/HR) | 5.26 |
Warm wind output(cubic eter/HR) | 1,885 |
MAX(KPA) | 3.40 |
MIN(KPA) | 2.74/1.75/2.74 |
Electrical Supply (Voltz/Hz/Phase) | 220-240/50/1 |
Motor | 1/3 H.P. 1100 RPM |
AMPERE(START/RUNNING) | 7.5 /2.6 |
Cabinet | Galvanized Steel |
Dimension | L = 30.8"/W = 18.3"/H = 28.3" |
Net .Weight(KG) | 52.62 |
12.Breeder Plastic Salt System
Poultry slat can offer a clean environment for birds in the house .
Features
1. Smooth surface avoid damage the birds feet and breast .
2. Big load bearing 250kg/piece .
3. Reinforcement treatment Prevent deformation .
4. Special design hole , keep slat clean.
5. Plug-in design , easy installation and dissemble .
6. Height is adjustable based on different type of birds .
7. Anti-UV Raw PP material , 10-15 years ' service life .
parameter
Weight : | 2.0 kg or 2.3 kg |
Dimensions: | 1000mm*482mm |
Hole size: | 26×16mm(used for poultry, duck in growing period) |
Hole size: | 16×16mm(used for duck in growing period) |
13.Lighting System ILOX
1. Dimmable with flicker free lighting
2. Wide beam angle
3. Soft start dimming
4. Up to 90% energy saving compared to incandescent bulbs
LED energy saving lamp 8W(900lm=70W incandescent bulb)
5. Perfectly dimmable from 0 to 100% brightness with ilox-dimmer EPU-1500 or DCE(=trailing-edge-principle)
6. High water and dust protection, IP67
Item | Consists goods | Specifications |
1 | LED lamp | 60*116mm/AC200-240/18(18S)/PF>0.8/CRI>80/185°/2900-3200K/8 |
2 | Flat wire | 2*1.5m2/13.3 x 5.5 mm Green Color Gernmany Standard |
3 | Waterproof end | Gernmany Imported |
4 | Dimmer | EPU-1500 Gernmany Imported |
14.Environment Control System
This system saves the labor and resources under the condition of assuring the optimum growth environment of the chickens. It is imported from Israel can set an optimum working mode according to the local climate and raising environment.
Consists | Item Name | Specifications |
environmental controller | Temptron607/610/616, AC-2000 PLUS, Rotem Platinum PLUS | |
environmental sensor | world top class products | |
humidity sensor | world top class products | |
negative pressure gauge | world top class products | |
power box | reliable and long service life | |
main control box(with alarm) | reliable and long service life | |
sub control box | reliable and long service life |
