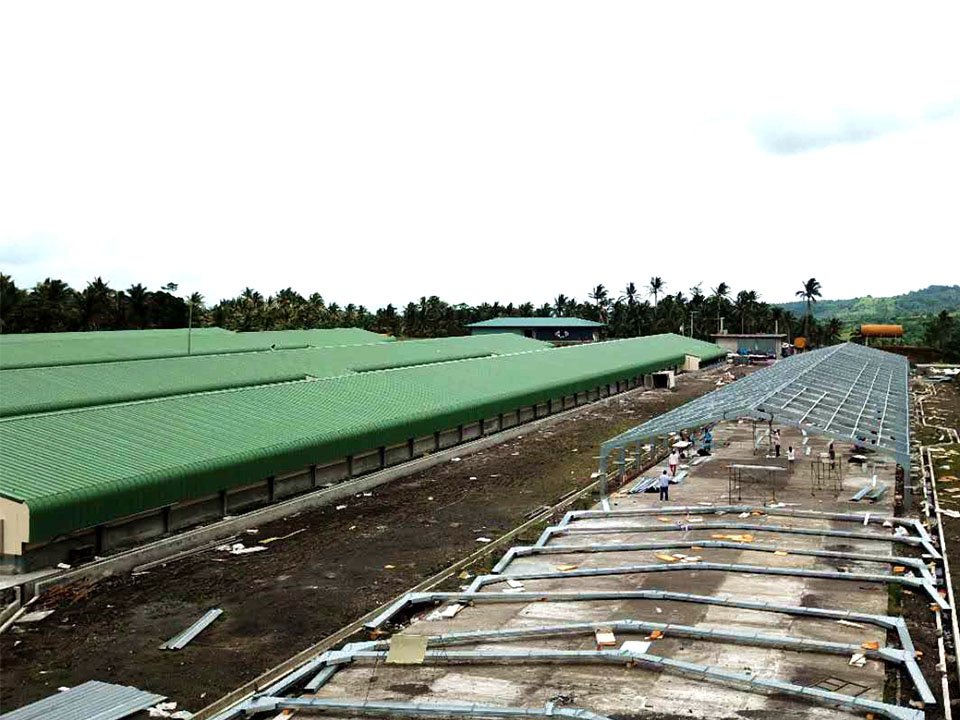

1. The construction period is much shorter than the traditional house .

2. Building materials are recyclable and environment friendly

3. Steel structure house can greatly reduce cost of foundation work .

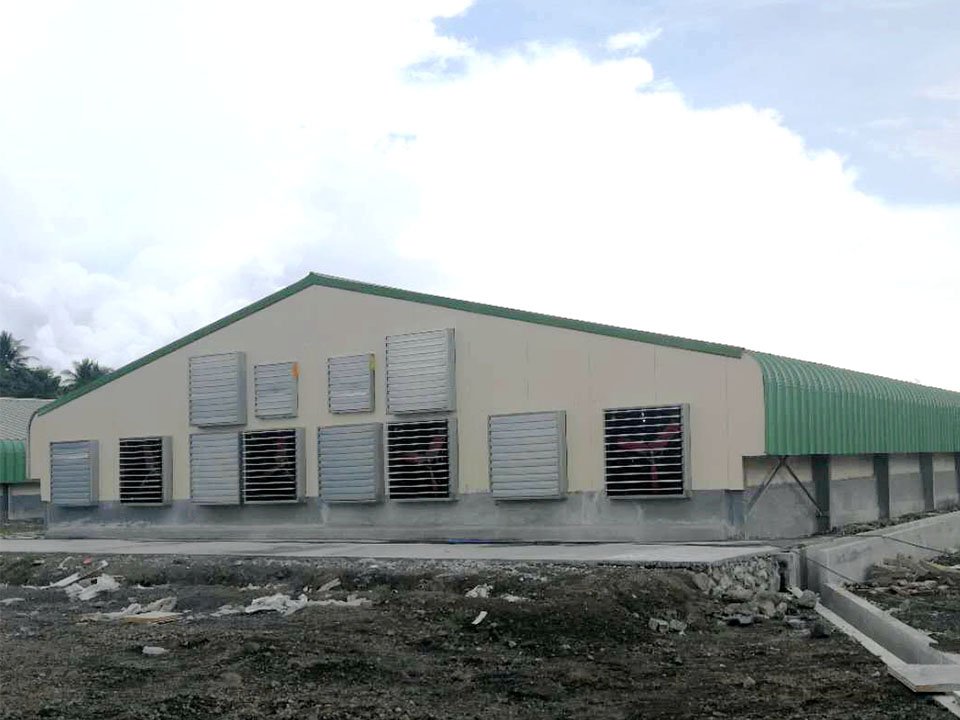

4. High rigid steel structure , high quality insulation material  , good structure design make the house good tightness, easily realize tunnel ventilation .

5. Construction system is modular and no welding is required.


Specification

1. Poultry house width is form 12m to 20 meter .

2. 100mm thickness wall of full R12 insulation , and 150mm thickness roof of full R18 insulation .

3. Modular panel and steel structure , installation is easy and quick .

4. High rigid material for steel structure , roof , purlin and wall frame .


Material :

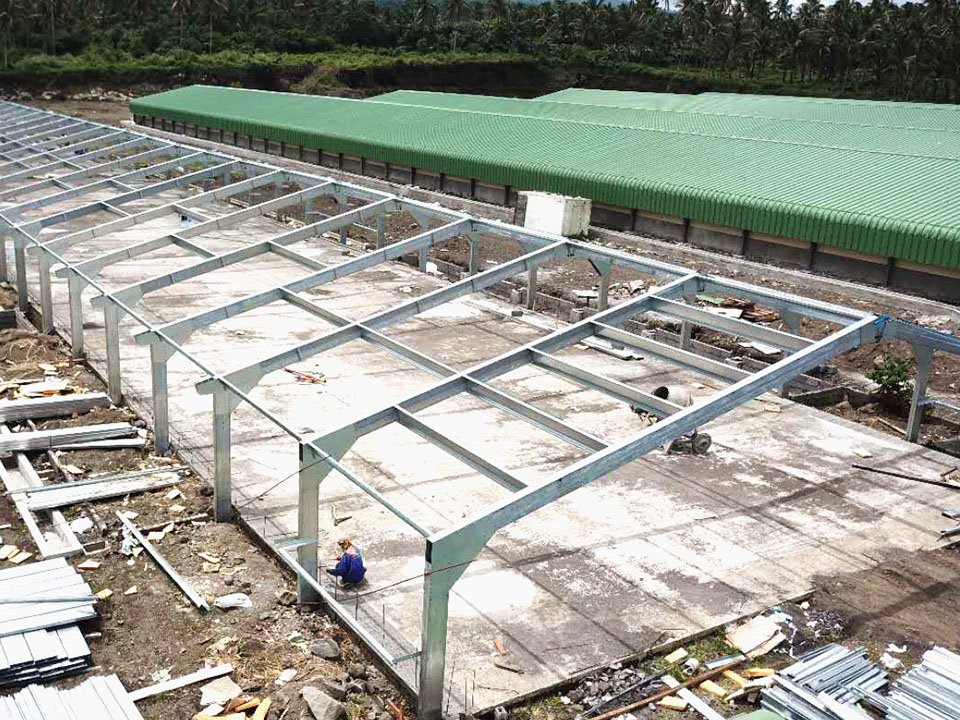

Steel structure

Steel structure is made of high strength galvanized steel Q345(S355)

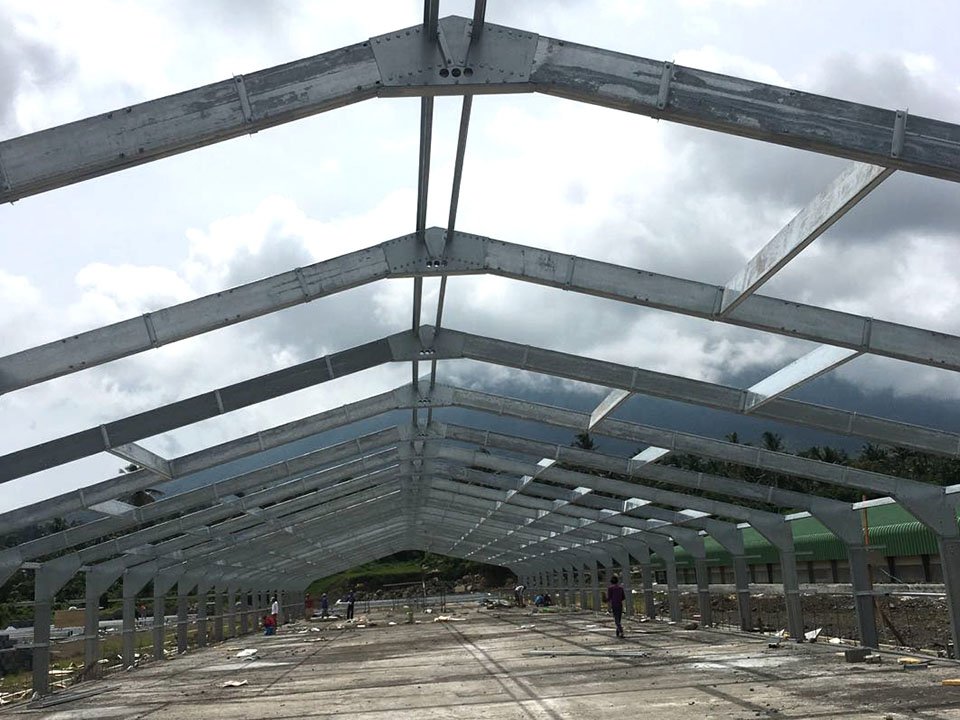

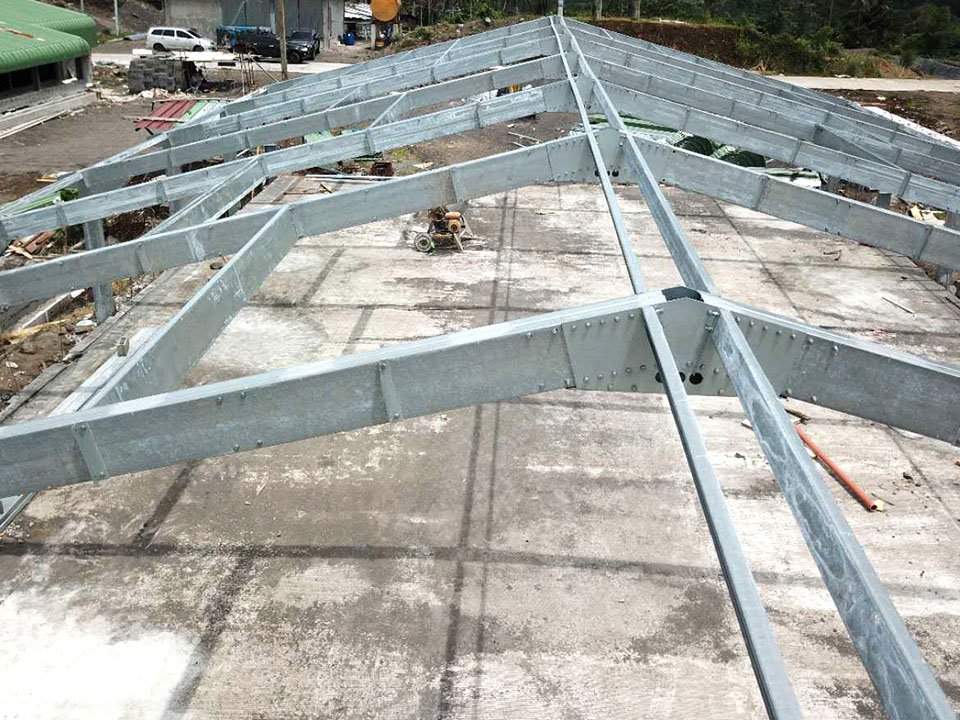

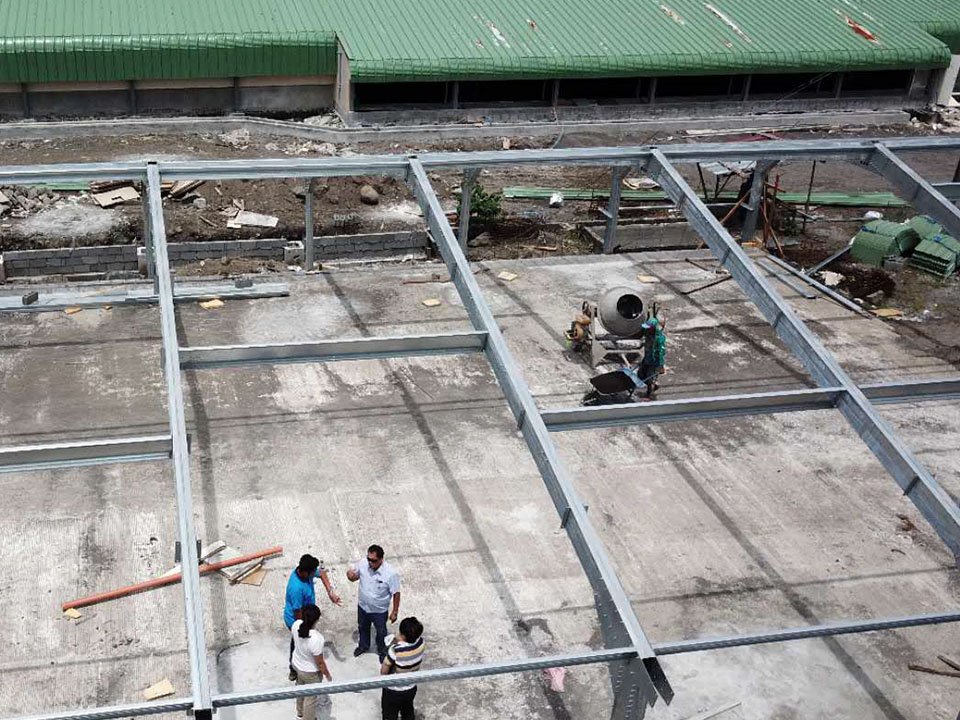

Stand columns and trusses consists of double-C frame , single C-frame, H frame and Square tube hollow frame.

Wall and Roof

Corrugated  pre-coating sheet plus good quality fiberglass insulation or high thermal resistance PU panel from 50mm to 75mm thick.

Wall insulation:R12(2.11 K·m²/W)

Roof insulation:R18(3.17 K·m²/W)
